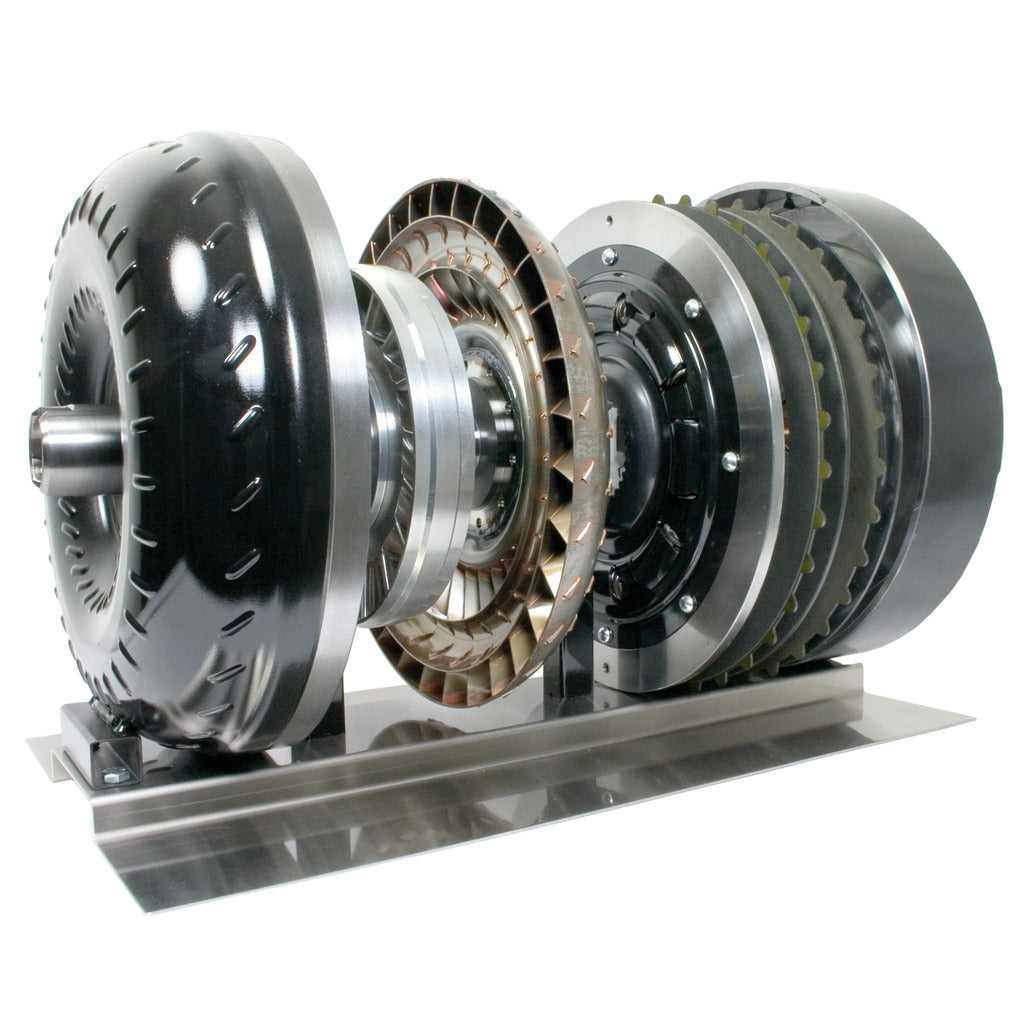

Proforce 3D Torque Converter Chevy Duramax Allison 1000 2001-2016

• Stock stall speed
• HD springs absorb shock of engagement
• Stamp forged 1-piece cover
• Increased clutch count
• Eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design
• Engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact decreases wear and chatter
• Thrust bearings - not plastic thrust washers
• Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
• Cast stator designs maximizes torque
• New sprag components ensure long term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12lbs compared to competitors

Not all multi-disc converters are created equal and with BD's ProForce 3D, less is more. Our in-house CNC machined billet cover is designed to prevent warping and improper balancing. With our cover design, we were able to increase strength while maintaining the factory height. We have engineered the clutch piston and damper assembly for increased strength, while retaining smooth and reliable vibration damping. With self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment and less wear resulting a longer converter life cycle.

INSTALL TIME

• 7 Hours
• 9 Hours w/4wd

WARRANTY

Parts

• 36-Months
• 150,000 Miles

Labour

• 12-Months
• 12,000 miles

Note

• No Race abuse covered

NOTE

• Enhanced Stall - Street or Towing Applications / Low Stall - Street w/Low Rear End Ration/Stock Tires / High Stall - Race/Drag/Sled applications only
