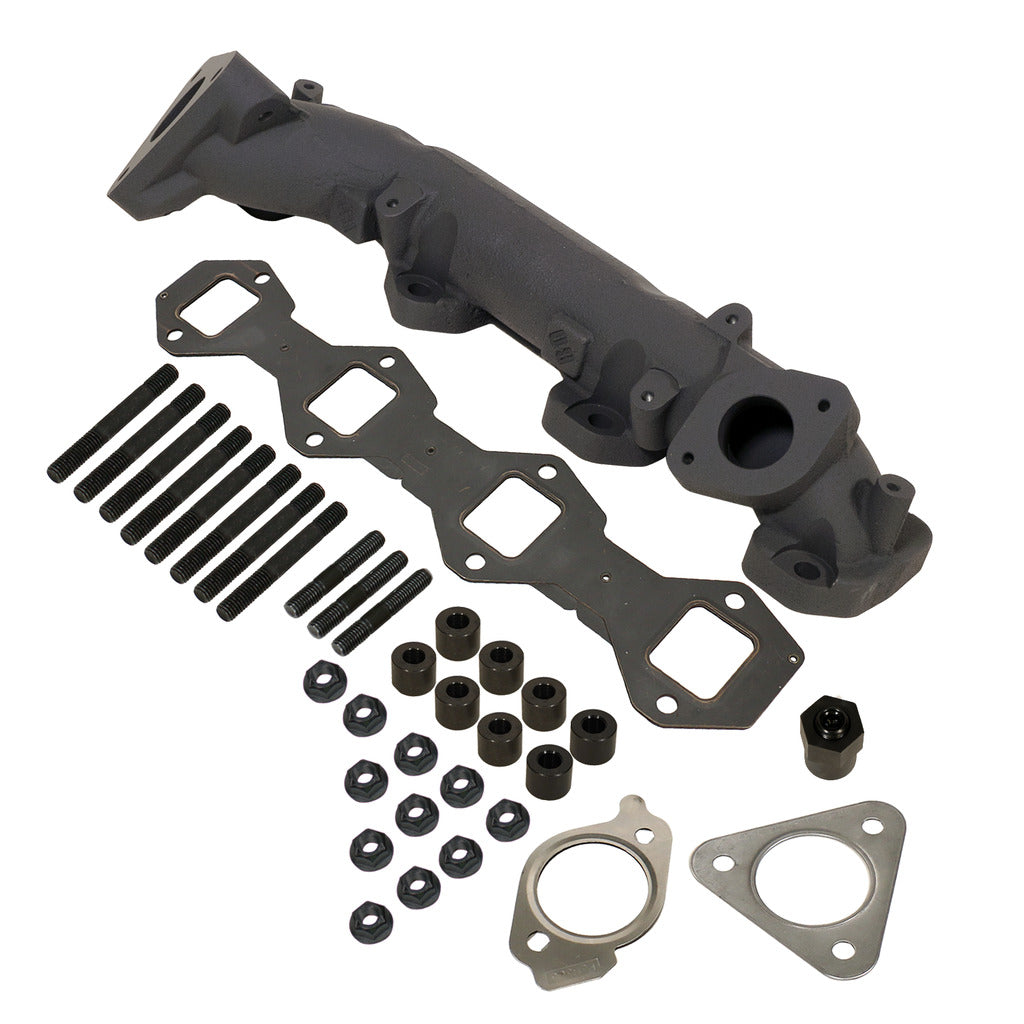

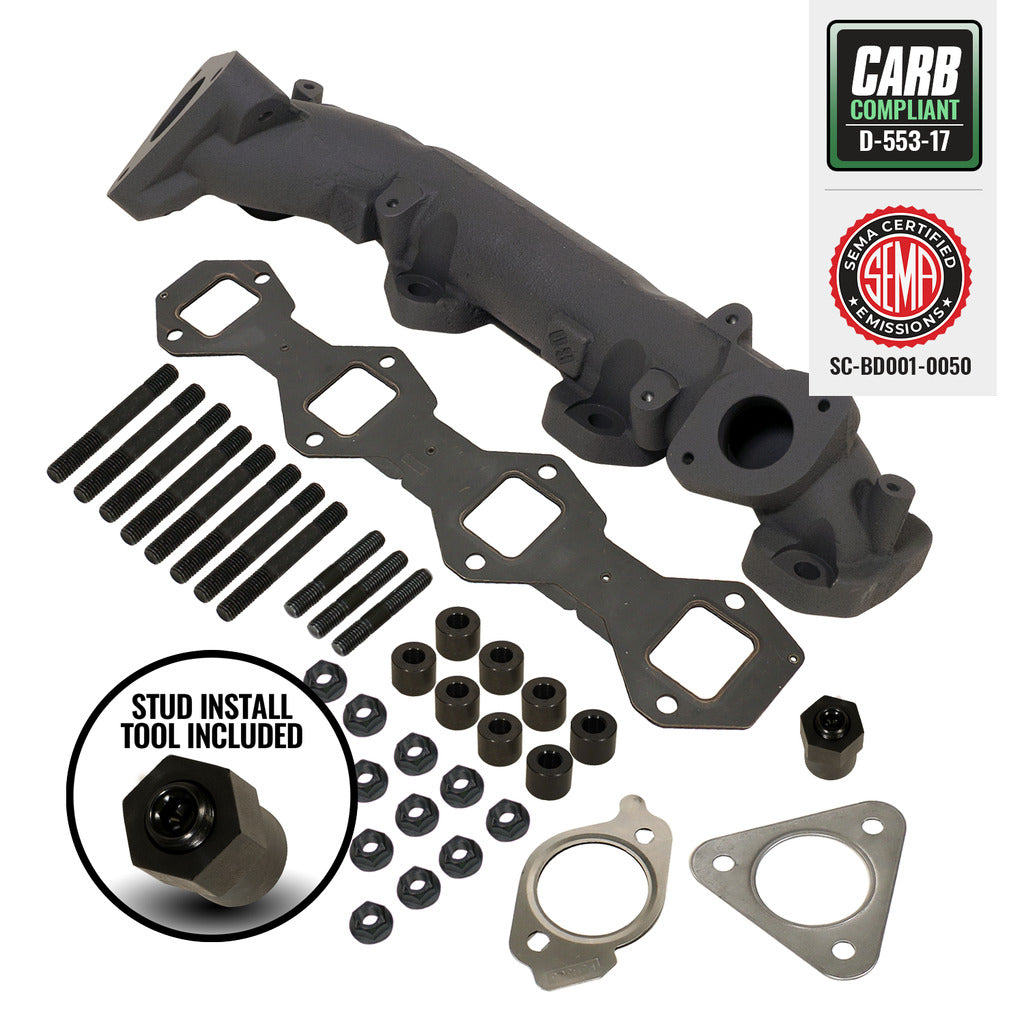

Exhaust Manifold Passenger Side Ford 6.7L Power Stroke F250 / F350 Pick-Up 2015-2019 & F350 / F450 / F550 Cab & Chassis 2017-2019

• 50 state legal
• Passenger Side
• High-silicon ductile cast iron
• 75% thicker walls retain heat and prevents warping
• Machined thicker bolting flange
• Includes the longest stud and spacer kit that fits across all 8-cylinders
• Longer exhaust studs improve thermal durability
• Thick spacers are black oxide coated
• Designed using computation fluid dynamics
• Exhaust ports are gasket matched
• High temperature POR 15 black coated
• Gaskets included: exhaust manifold, cross over tube, EGR port
• M8 stud install tool included
• Fully EGR compatible

BD focused on solving one of the Ford 6.7L common failures, the exhaust manifolds. Crafted with a heavy duty 0.275" thick-walled Hi-Silicon ductile casting, this makes these manifolds 75% thicker to combat cracking due to high exhaust temperatures. Thermal durability has been improved with longer exhaust studs and spacers plus thicker, more durable machined bolting flanges. Fully EGR compatible, BD's exhaust manifold set is the perfect replacement for reliability and peace of mind.

INSTALL TIME

• 9 Hours

WARRANTY

Parts

• 36-Months
• 75,000 Miles

NOTE

• CARB EO No. D-553-17
• Replaces OEM Part #FC3Z9430B,DC3Z9430A (Right Side)
• SEMA Certification No. SC-BDD01-0050
• Trucks using the MPD budget SXE turbo kit must use part number 1043006 with an OEM passenger side manifold
