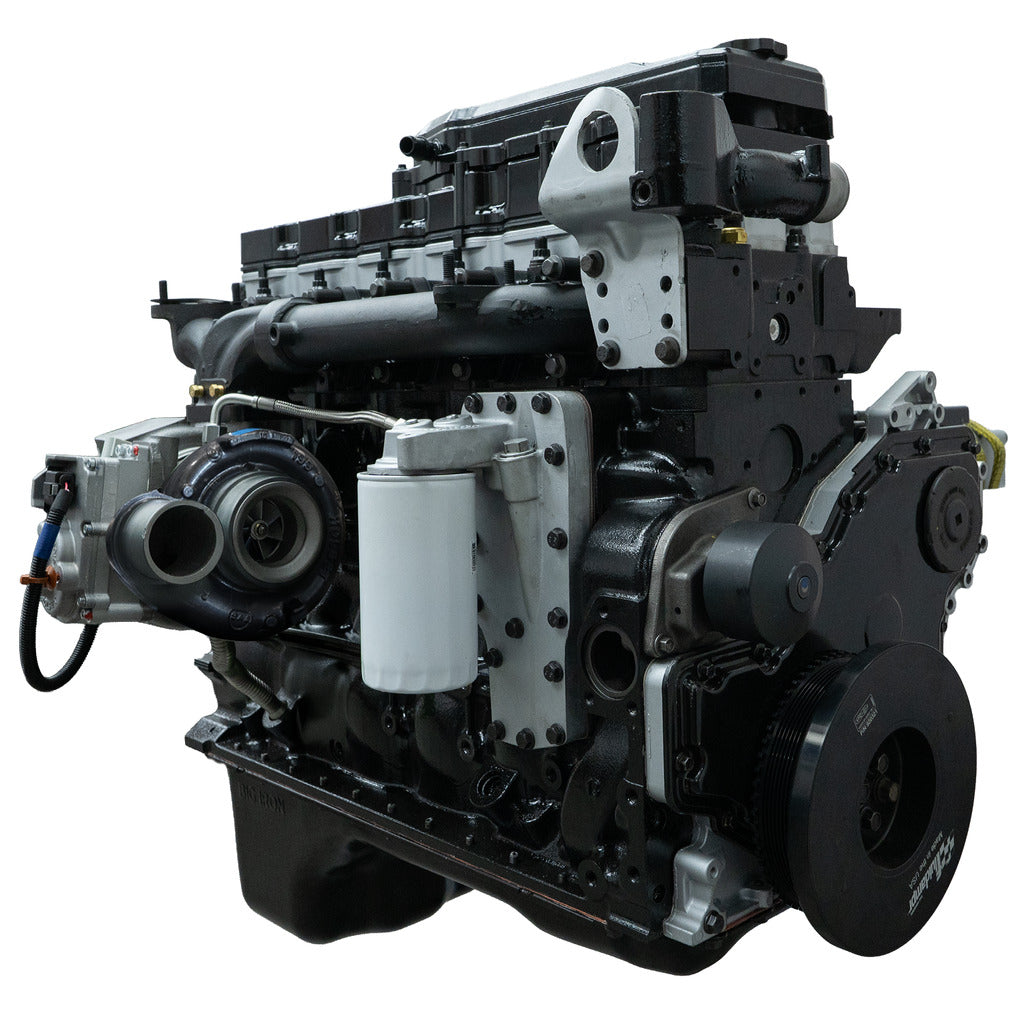

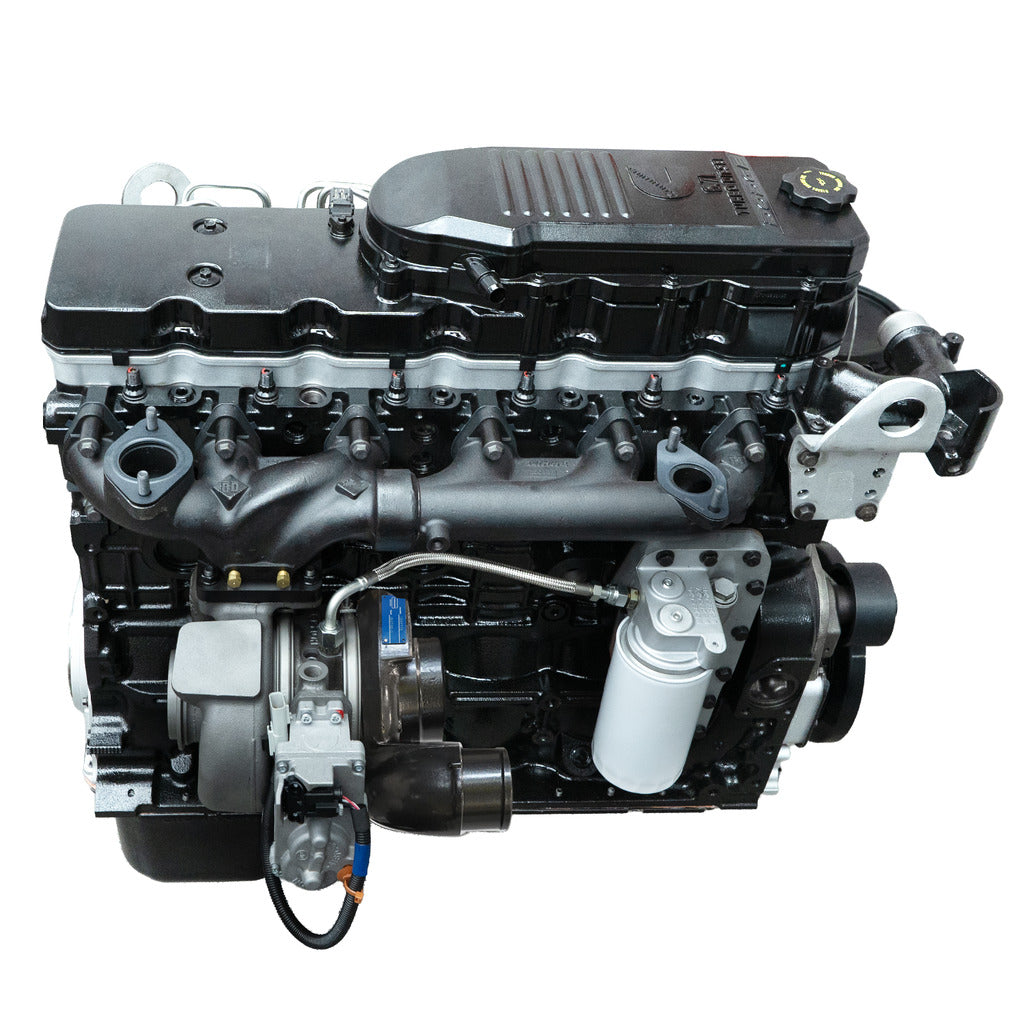

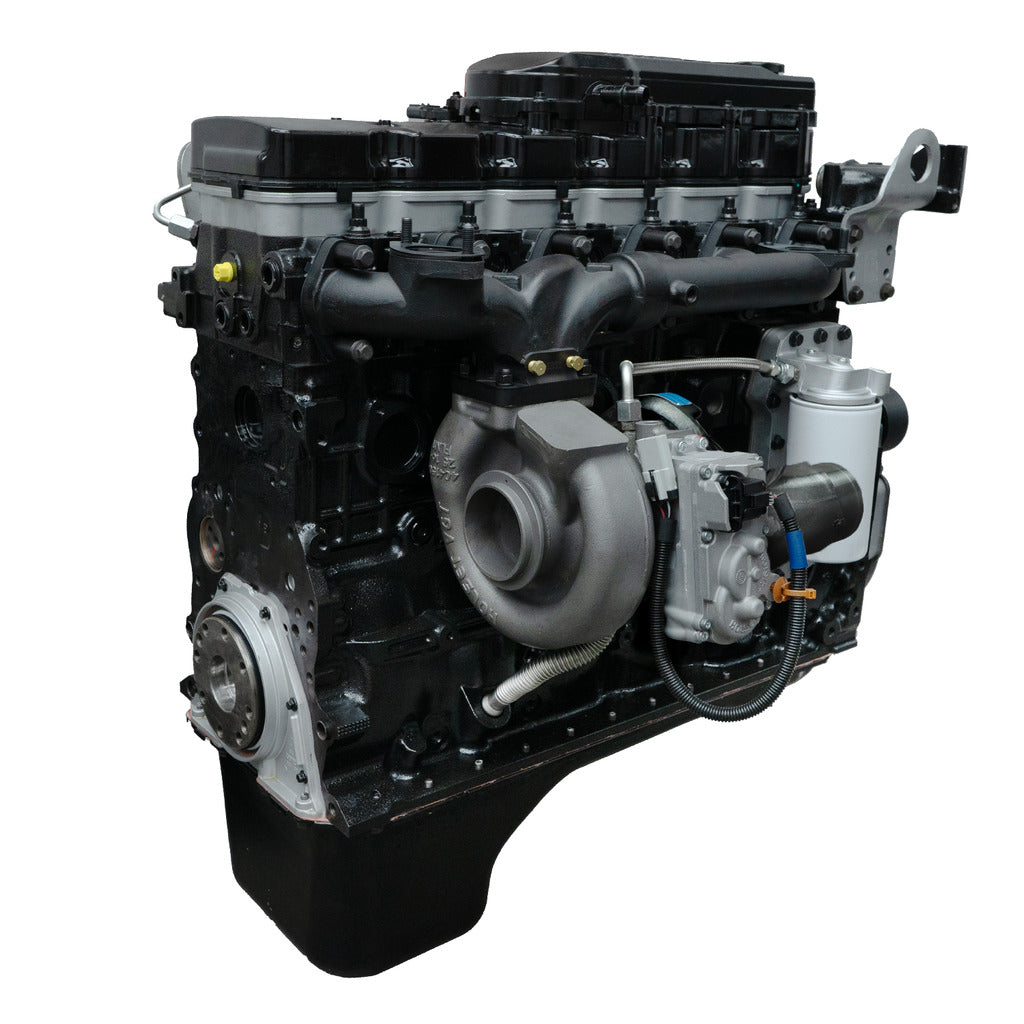

HEAVY HAULER READY RUN ENGINE DODGE RAM 2500/3500 6.7L CUMMINS 2007-2012

LONG BLOCK

• Comprehensive Inspection: Disassembled, crack-checked, blasted, and cleaned before machining.
• Precision Machining: CNC bored, line bored, surfaced as needed, and torque plate honed to exact specifications.
• Custom ARP Head Studs: 9/16" head studs provide the best head-to-block seal possible. D&J ARP 9/16" Head Studs torqued to 175 ft/lbs.
• High-Performance Cylinder Head: D&J Stage 1 Performance Cylinder Heads are disassembled, crack-checked, fitted with extra-large, heavy-duty seats, machined for thread-in soft plugs, and 5-axis CNC-ported. Each head undergoes a CNC high-performance valve job and is pressure-checked before assembly and painting. Blueprinted and Balanced: All engines are blueprinted, balanced, oil clearance measured, and rings file fit.
• Pre-lubed and Painted: Engines are painted black and shipped pre-lubed with break-in oil and filter included.
• Machined Rocker Box and Pedestals: Ensures a precise fit and optimal performance.
• High Power Rating: Rated for up to 700 hp, suitable for high-demand applications.
• D&J HD 7/16" Pushrods.
• D&J 200 CFM Stage 1 High-Performance Cylinder Head.
• D&J tow performance cast cam.

BD MANIFOLD

• Two-piece high-silicon ductile iron to withstand extreme exhaust gas temperatures.
• Grade 10.9, black oxide-coated bolts, and spacers.
• Pre-drilled for pyrometer probes.
• SEMA Certification No. SC-BDD01-0155

BD TURBOCHARGER

• 64.5mm 7+7 blade billet compressor wheel and 70mm 12 blade turbine wheel.
• Quick spool turbine wheel has 15% less MOI (moment of inertia) which results in quicker turbo response.
• Actuator pre-programed for drop in functionality.
• Fully remanufactured and VSR high speed balanced for long term reliability.
• CARB EO D-553-32

BD HIGH PRESSURE FUEL SYSTEM

• Remanufactured by Bosch trained technicians for quality assurance.
• Remanufactured CP3 injection pump with new metering unit installed.
• StockPlus Premium injectors (up to 15HP) with new Bosch OE nozzle, solenoid, and control valve (SEMA Certification No. SC-BDD01-0017)
• Fuel injectors and CP3 pumps tested on a Bosch 815 test bench to ensure correct operation in all conditions.
• Includes BD’s OEM fit fuel lines for easy fitment and install.
• High-quality gaskets.

ALL ENGINES ALSO INCLUDE THE FOLLOWING COMPONENTS

• Fluidampr harmonic balancer.
• Turbo oil feed line and drain tube.
• New water pump and thermostat.
• New coolant temp sensor.
• New Bosch fuel rail including pressure sensor and relief valve.
• New high pressure fuel lines and injector feed tubes.
• New oil pressure switch/sensor.
• Dipstick and tube.

The D&J Heavy Hauler Ready Run engine is designed to provide reliable performance for your diesel engine needs. This engine begins with a Heavy Hauler Long Block and adds a range of BD components to prepare it for installation. Including an upgraded Screamer performance turbocharger with a two-piece heavy-duty manifold, designed to provide increased airflow. The Heavy Hauler engine also includes a high-pressure fuel system, from the CP3 pump to the SEMA-certified StockPlus Premium injectors (up to 15HP), while a new water pump and valve cover complete the package. Each engine is meticulously built with precision and care, ensuring quality and peace of mind for those seeking exceptional performance.
