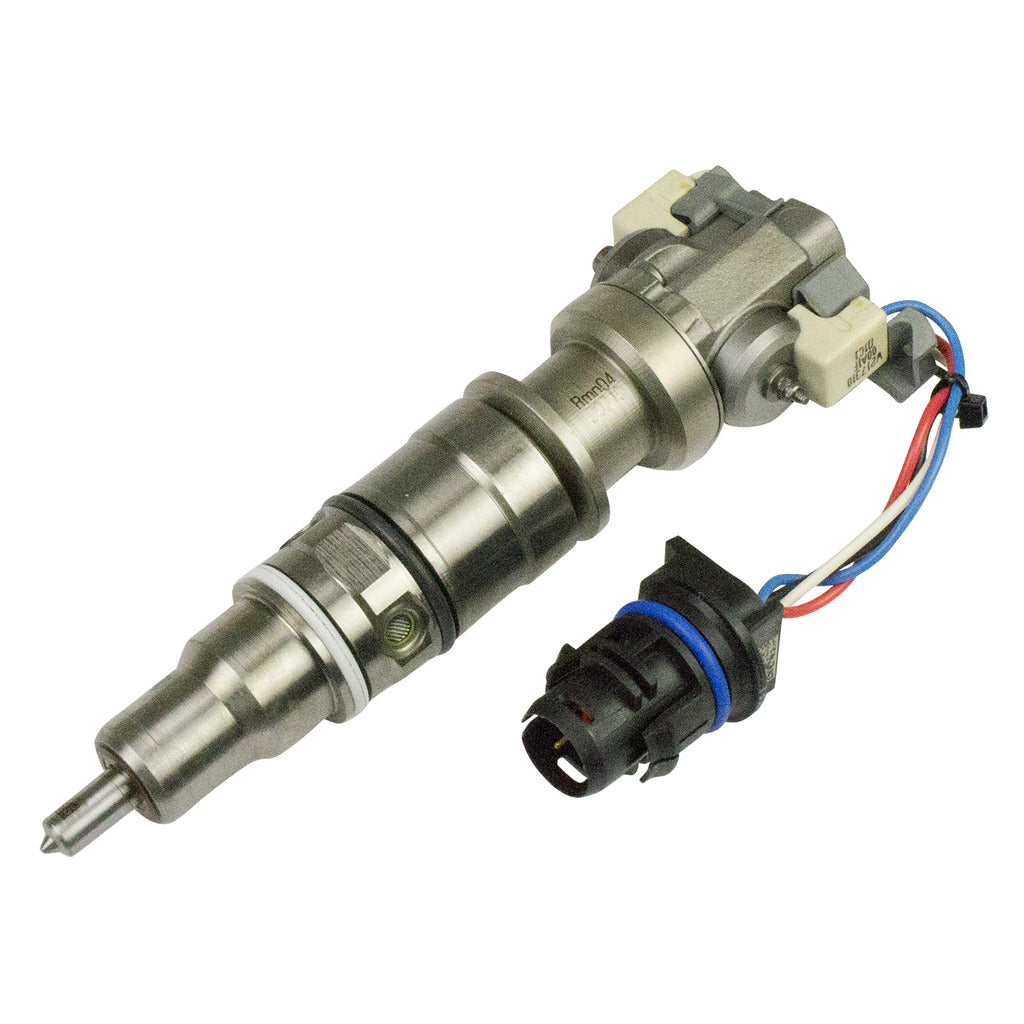

Stock Fuel Injector Ford 6.0L Power Stroke 2004-2007 (after 09/21/2003)

• Remanufactured by UpTime Parts/PurePower Technologies - an OE rebuilding company
• Replaced rail connections, thru-rod, nuts and belleville washers, o-rings, springs and spool valves
• Control Valve body and spool are precision ground to specific diametrical clearance for sealing and directing oil for injector operation
• All spools are replaced 100% and machined to original specification
• Each injector is 100% flow tested and nitrogen tested for leaks
• Flow volume, leakage rate, max needle lift and valve opening pressure (VOP) are also tested
• All sealing surfaces are refinished and maintain less than 2 microns of flatness
• Precision honed intensifier body is matched with new plungers to operate at extreme pressures and temperatures
• Replaced dampening pins and check plates to prevent cavitation
• Quality OEM injector at an aftermarket price

Comes with everything you need for an injector install, including o-rings and seals. Each unit completely refreshed with new rail connections, thru-rod, nuts and Belleville washers, o-rings, springs and spool valves, dampening pins and check plates. Control valve body and spool are precision ground to ensure perfect original spec sealing. Precision honed intensifier body with new matched plungers. Each injector is thoroughly tested, and all sealing surfaces are refinished.

INSTALL TIME

• 5 Hours

WARRANTY

Parts

• 24-Months
• Refer to Manufacturer's Warranty

Labor

• 24-Months
• Refer to Manufacturer's Warranty

Note

• PurePower injectors are evaluated by Alliant Power to determine eligibility for warranty. Removal and reinstallation labor reimbursement is issued in accordance with the most recent version of the Alliant Power warranty repair flat rate labor schedule.

NOTE

• After production date 9/22/03
