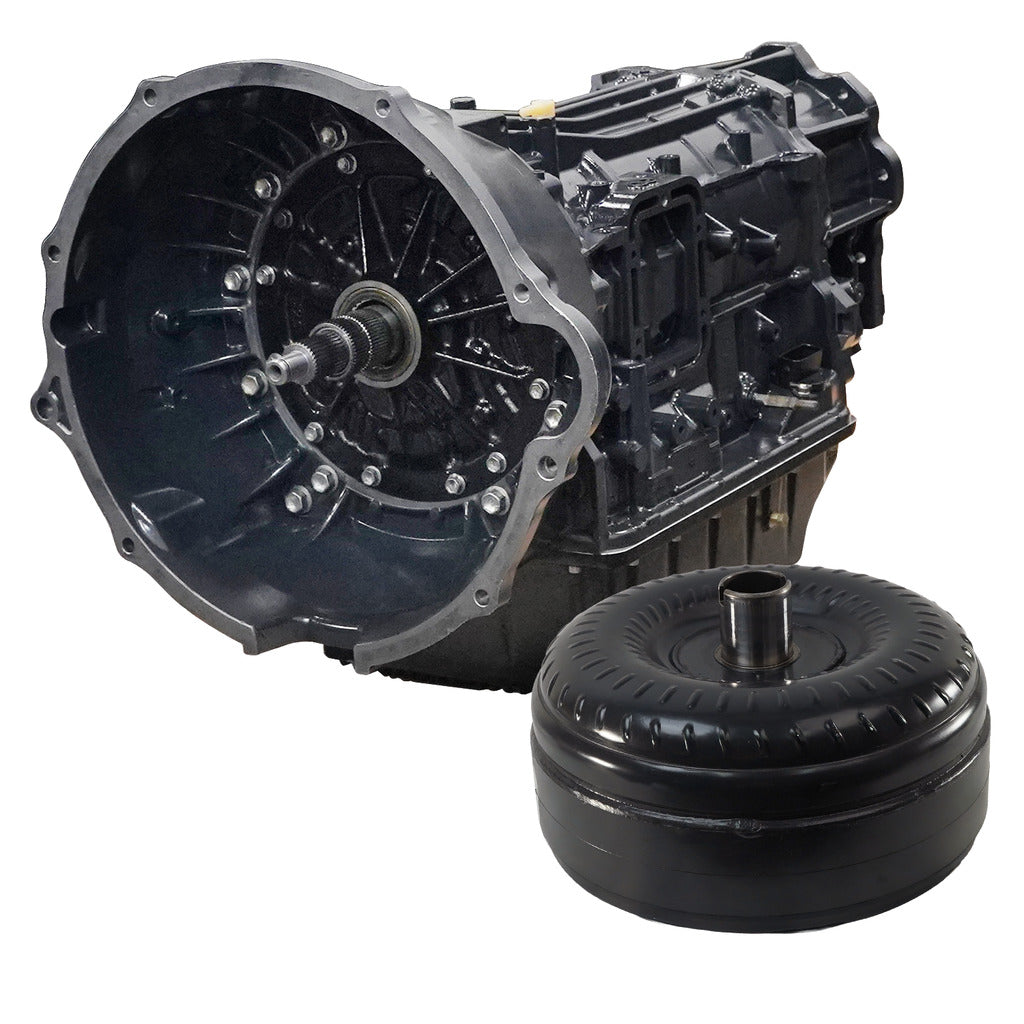

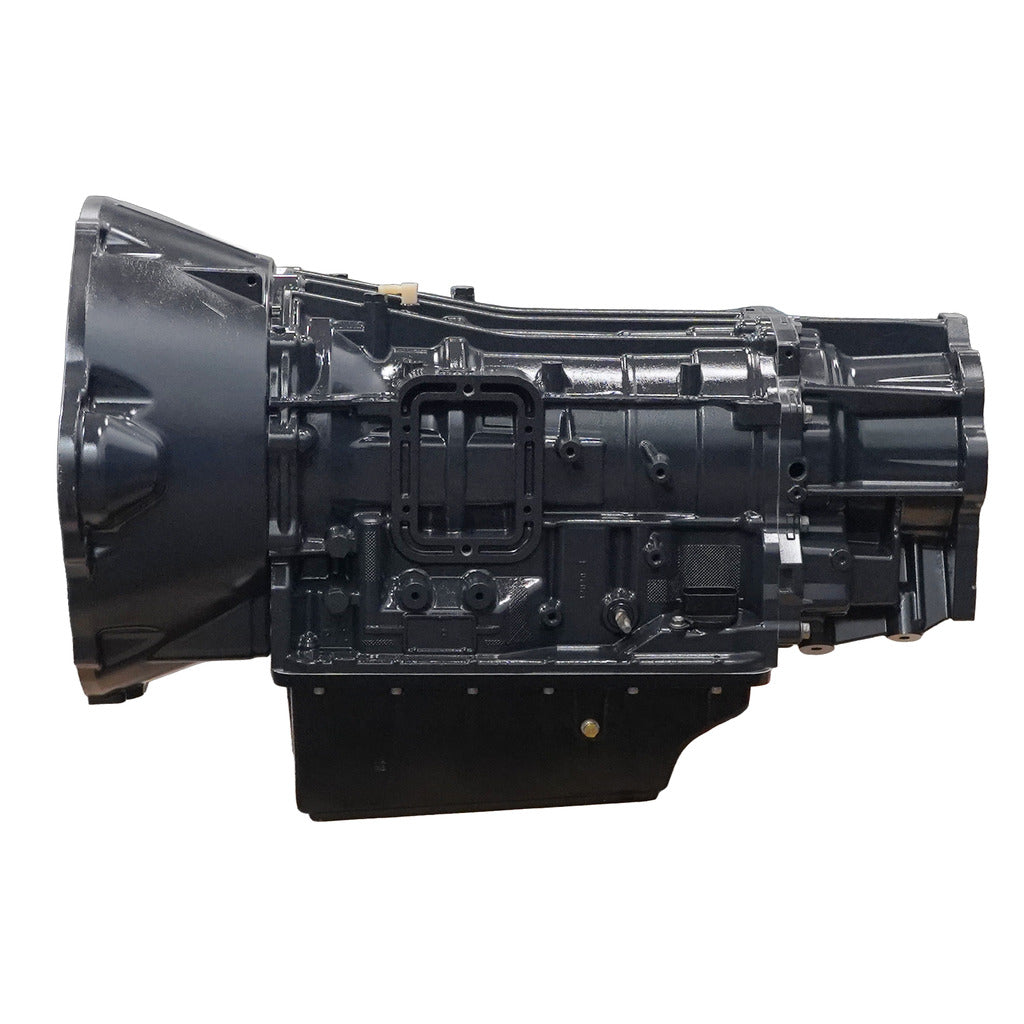

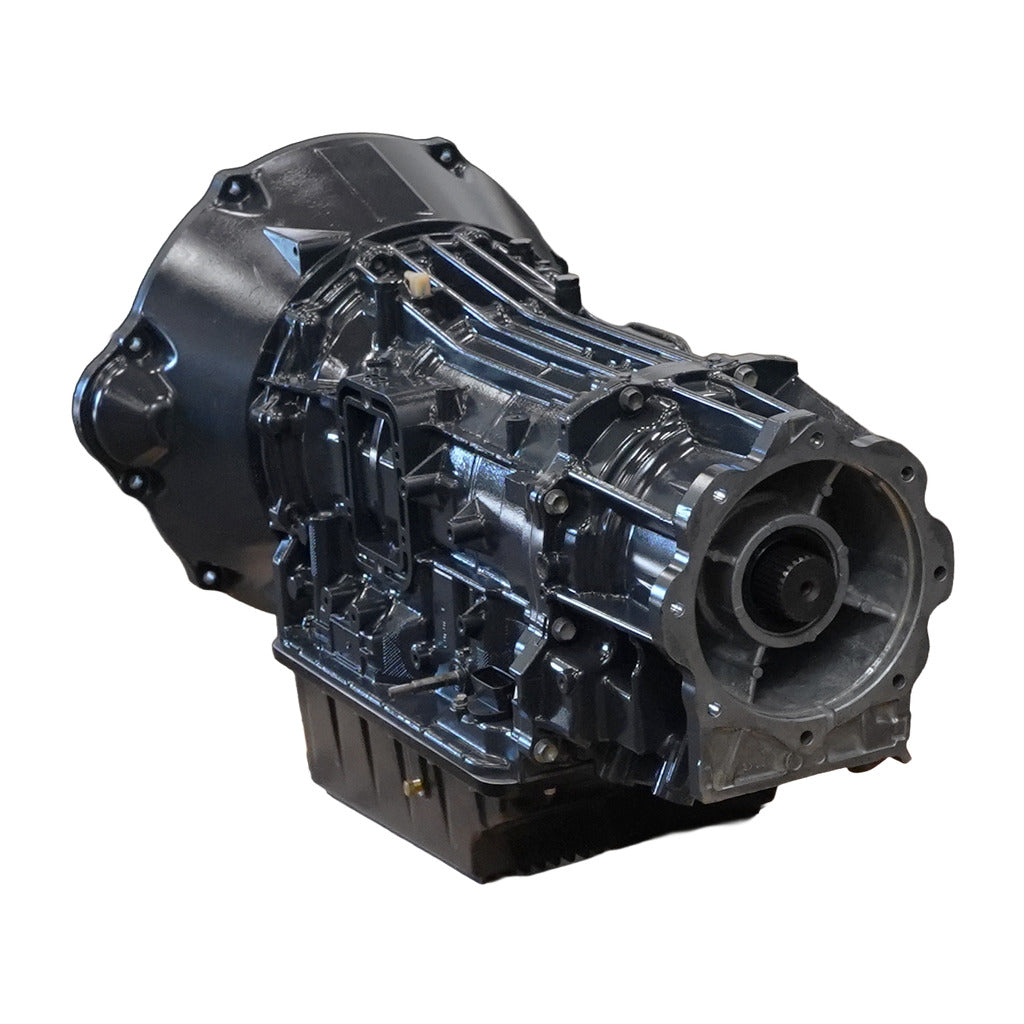

TORQUEMASTER TRANSMISSION & CONVERTER PACKAGE AISIN AS69RC RAM 3500/4500/5500 6.7L 2019-2024

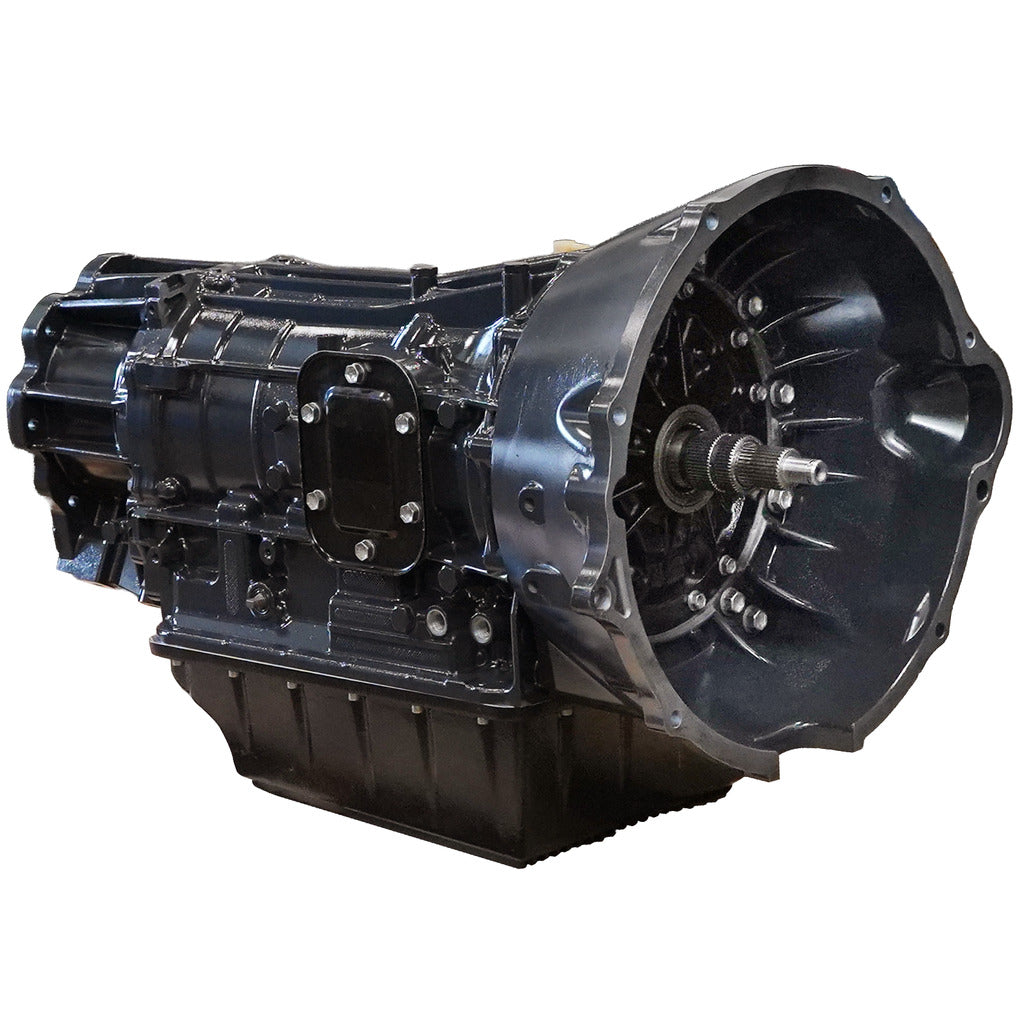

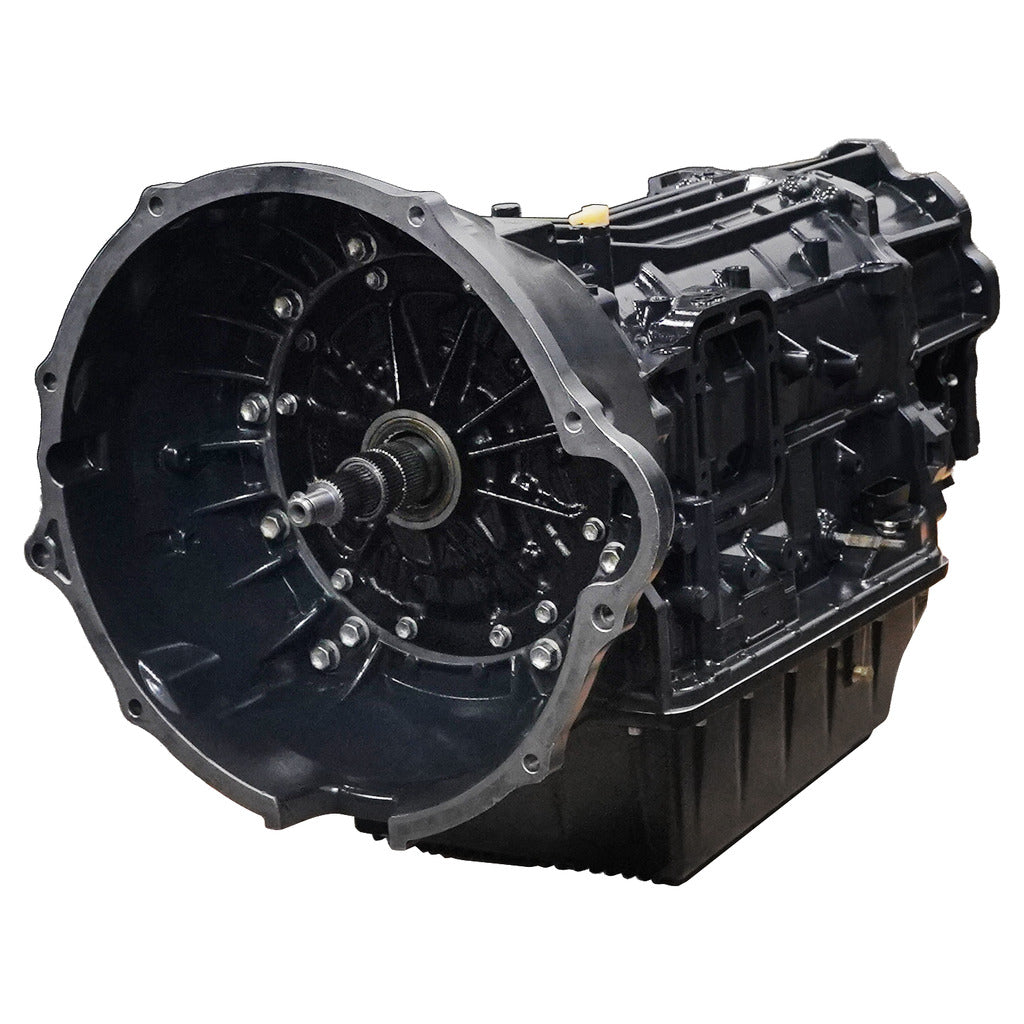

TRANSMISSION

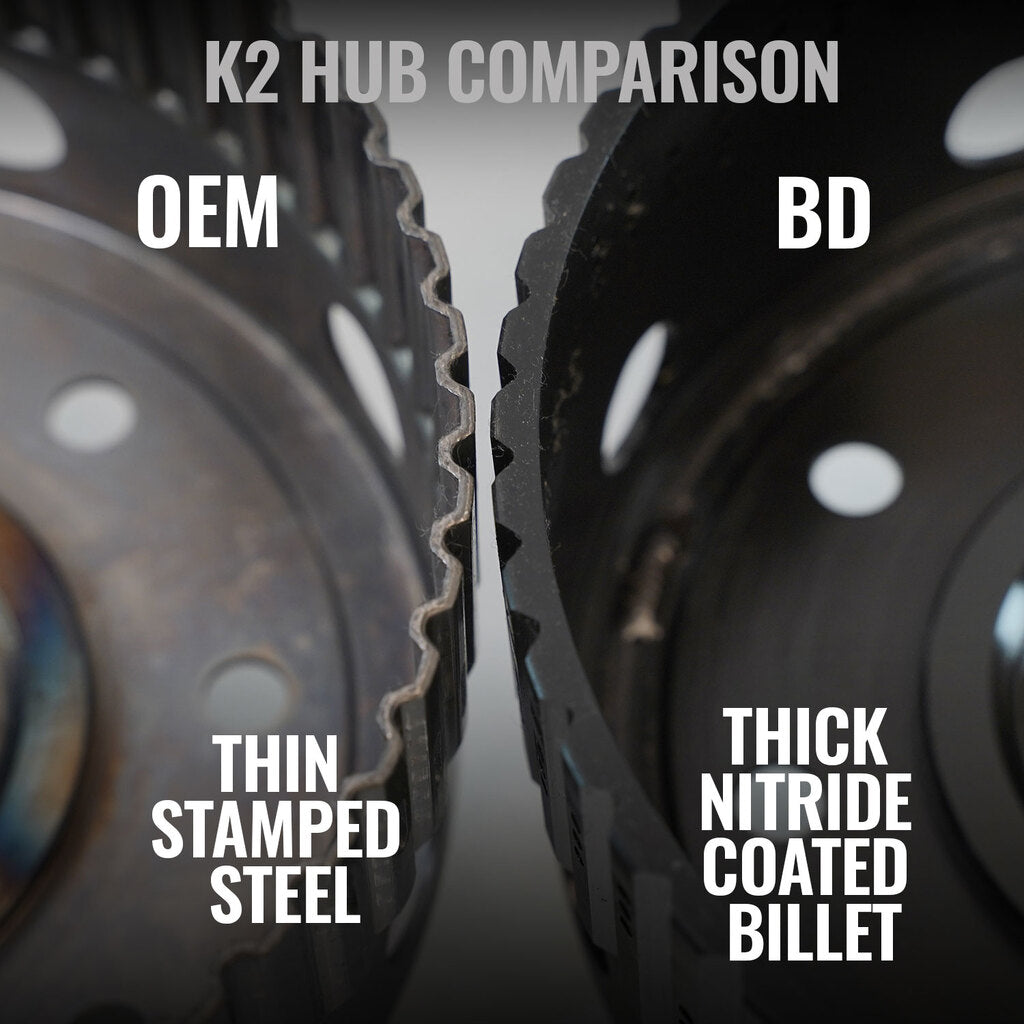

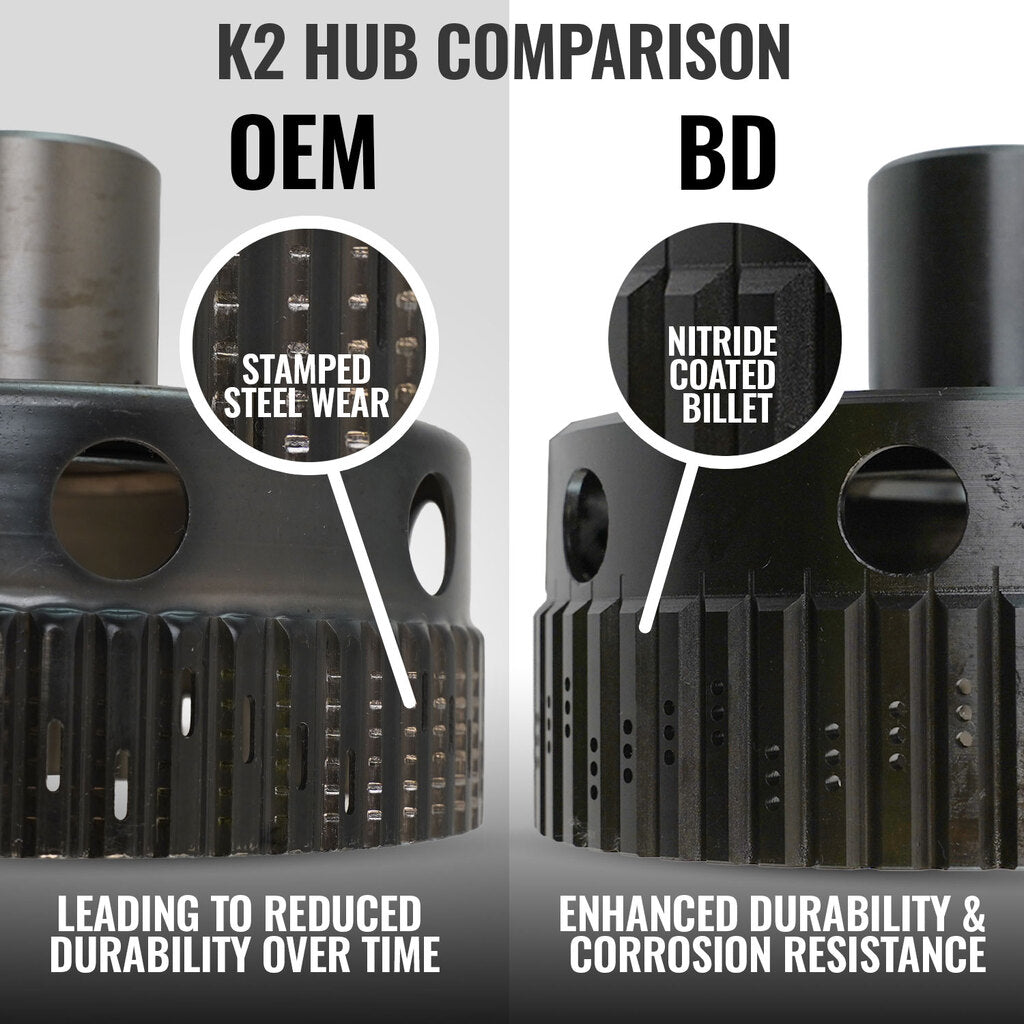

• BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

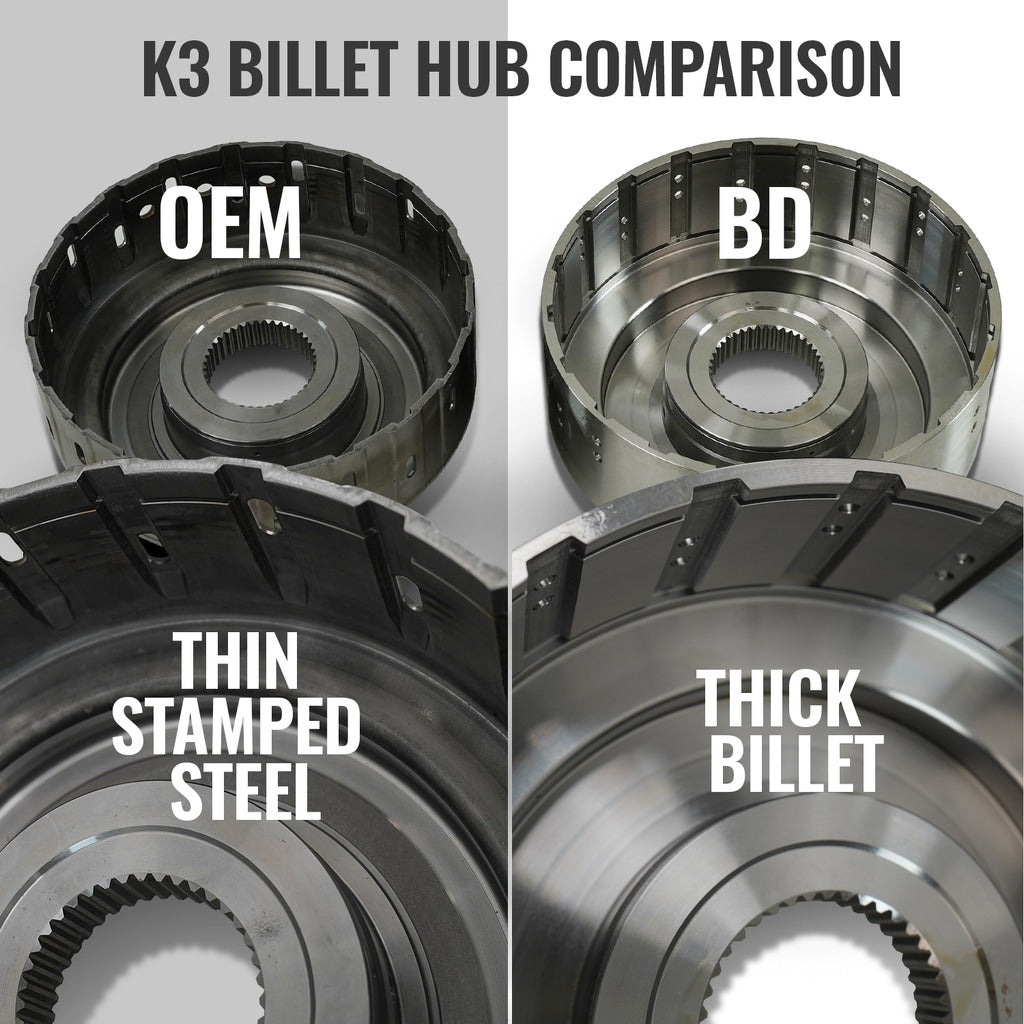

• Billet K3 drum increases clutch capacity while also increasing rigidity and strength to resist ring groove failure

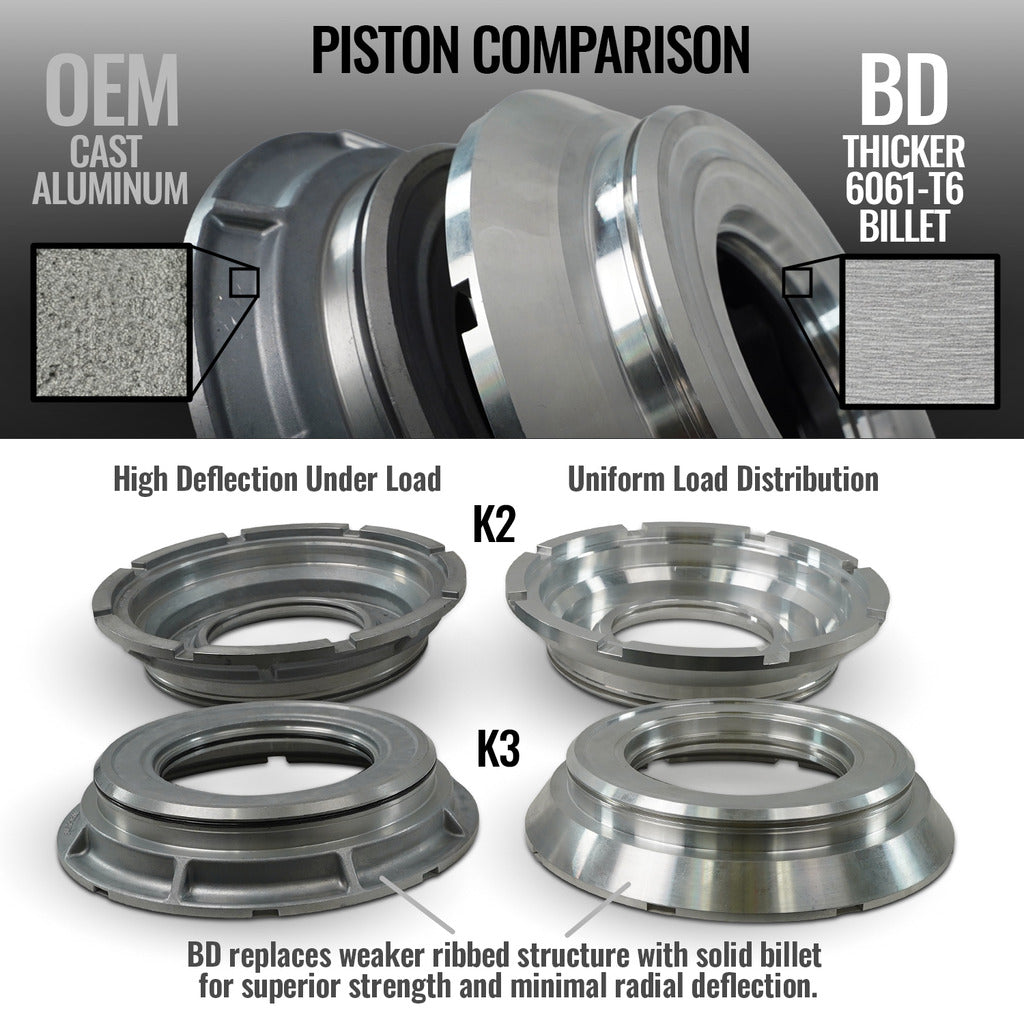

• Billet clutch apply pistons in K2 and K3 for increased rigidity and reduced flex
• More clutches compared to stock and competitors to increase clutch torque capacity and durability
• Clutch Count K1: 7

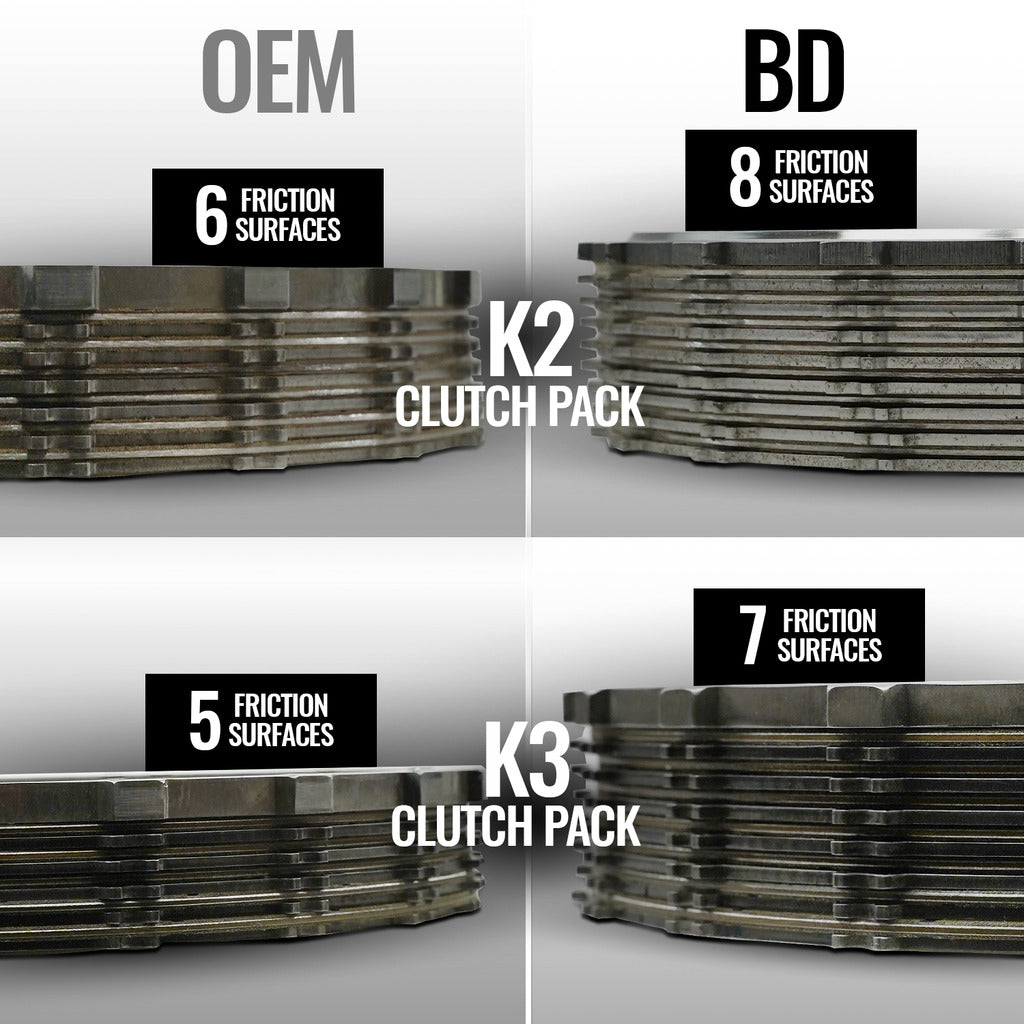

• Clutch Count K2: 8 (33% increase over stock)
• Clutch Count K3: 7 (40% increase over stock)
• Clutch Count B1: 6 (20% increase over stock)
• Clutch Count B2: 9
• Increased valve body line pressure for increased clutch holding capacity

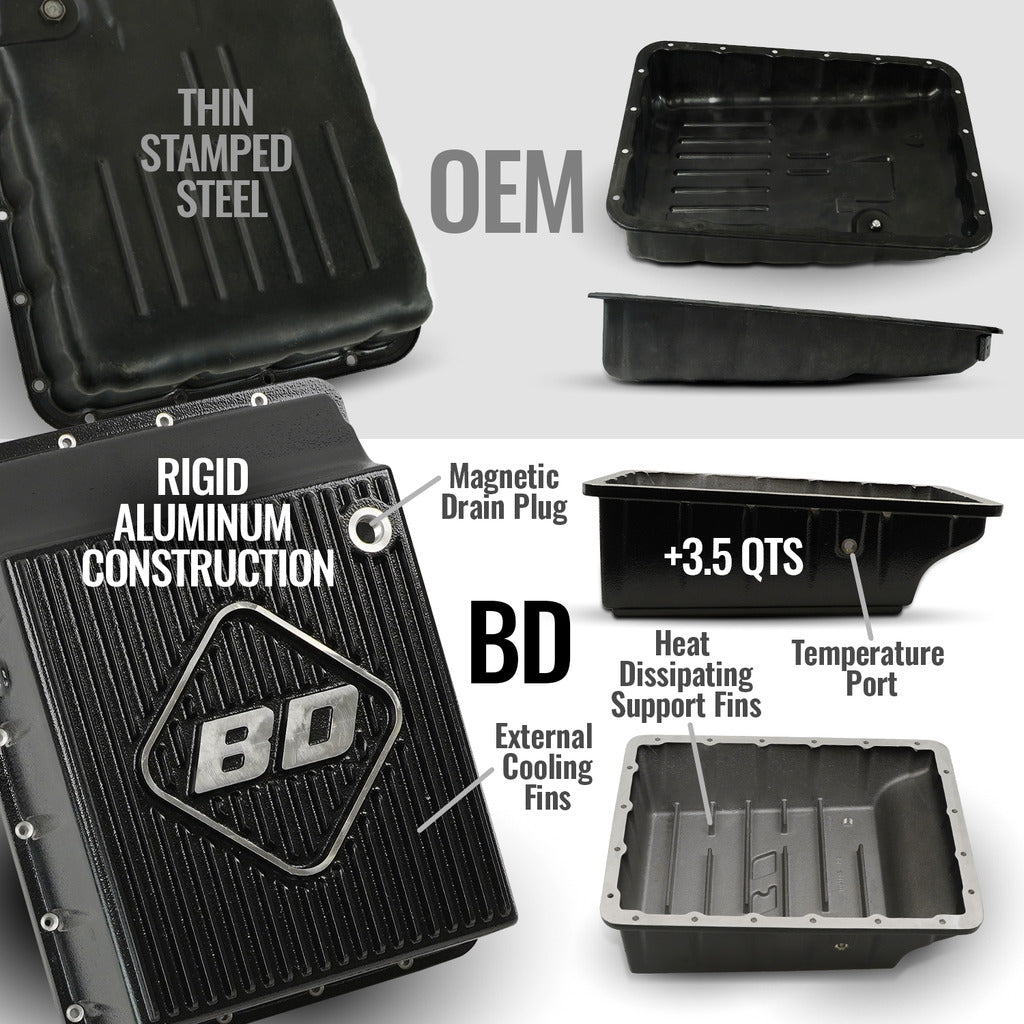

• BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

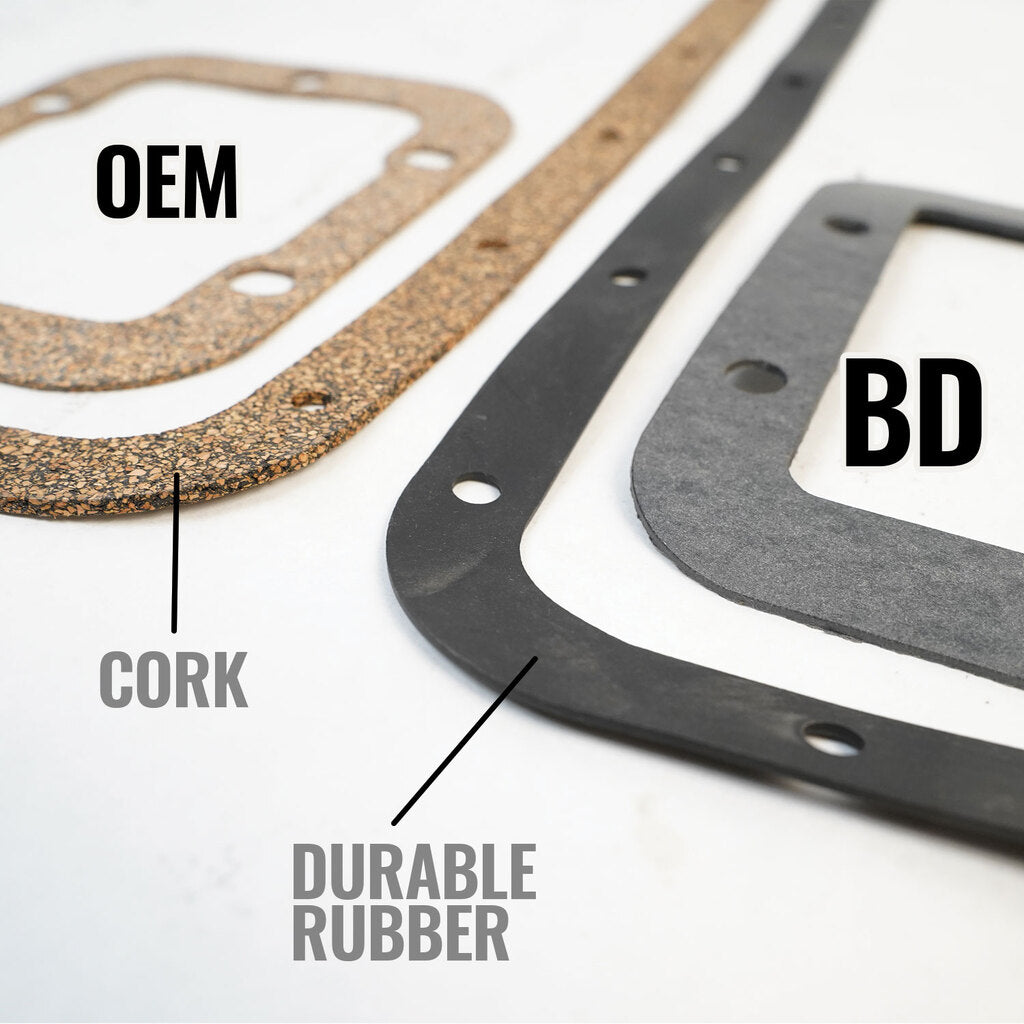

• Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets

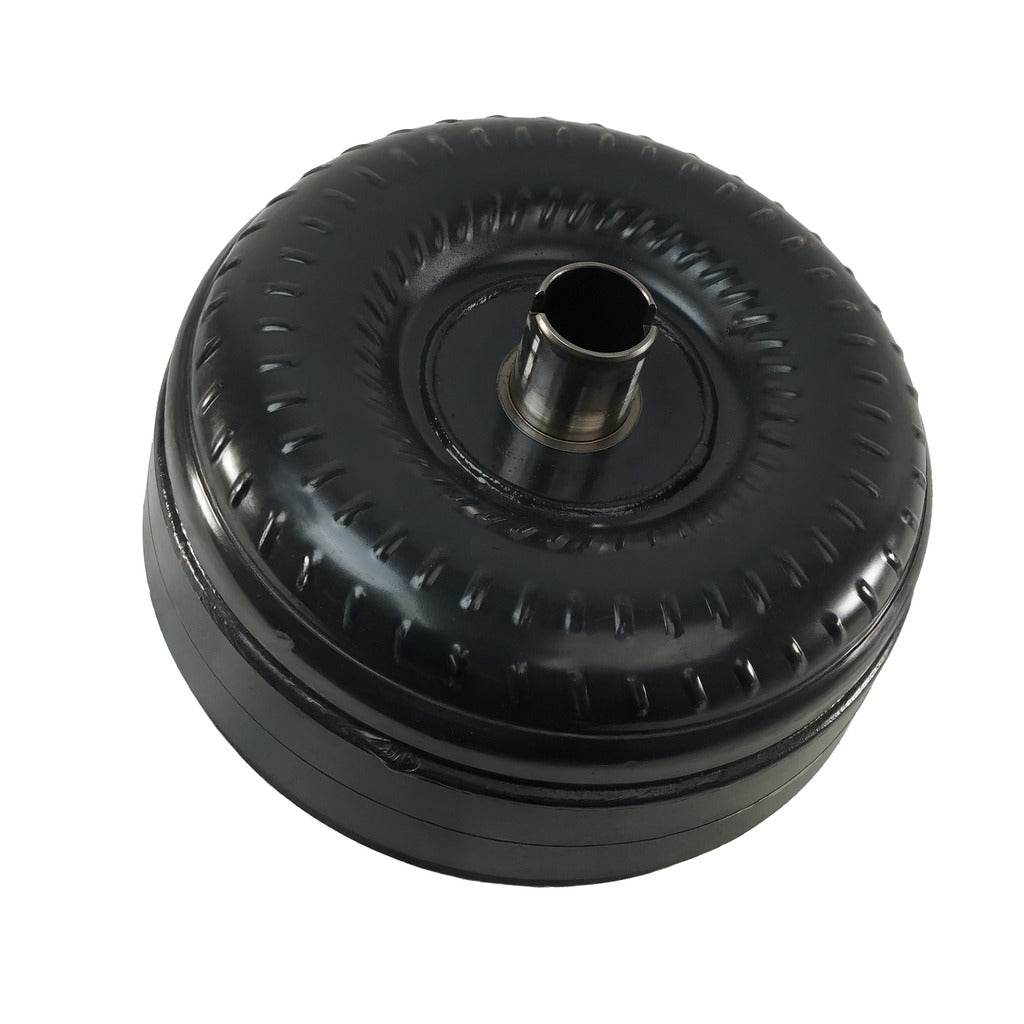

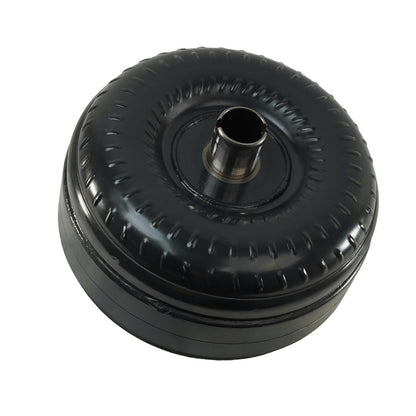

BD PROFORCE TORQUE CONVERTER

• Increased torque capacity (10 TCC plates, OEM 6)
• Billet 4140 Cover, Piston, and Hub
• Billet 4140 Turbine Hub
• Upgraded TCC frictions & steels
• New Sprag, seals & O-rings
• Rebuilt Stator

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel; many of these trucks are modified and therefore require a performance transmission to help deliver this power to the road. Friction counts have been increased in K2, K3, and B1 clutch packs to improve transmission torque capacity. To handle this increased torque capacity, the Torquemaster utilizes a custom billet nitride K2 hub and a billet K2 apply piston, which resists excessive spline wear found on the factory K2 hub. A billet K3 hub and piston are used in the K3 pack for increased durability, alongside the 40% increase in clutches. The billet K3 drum also resists ring grooving far better than the factory drum. Frictions used in aftermarket rebuilds commonly compromise shift quality; in all BD AS69s, frictions have been custom-selected to maintain OEM shift quality. Leak-prone factory cork gaskets on the pan and PTO have been replaced with improved nitrile gaskets. The AS69RC Torquemaster also includes a BD Deep Pan and ProForce 10D Billet Torque Converter.
