TRANSMISSIONS

PART # 1064444F

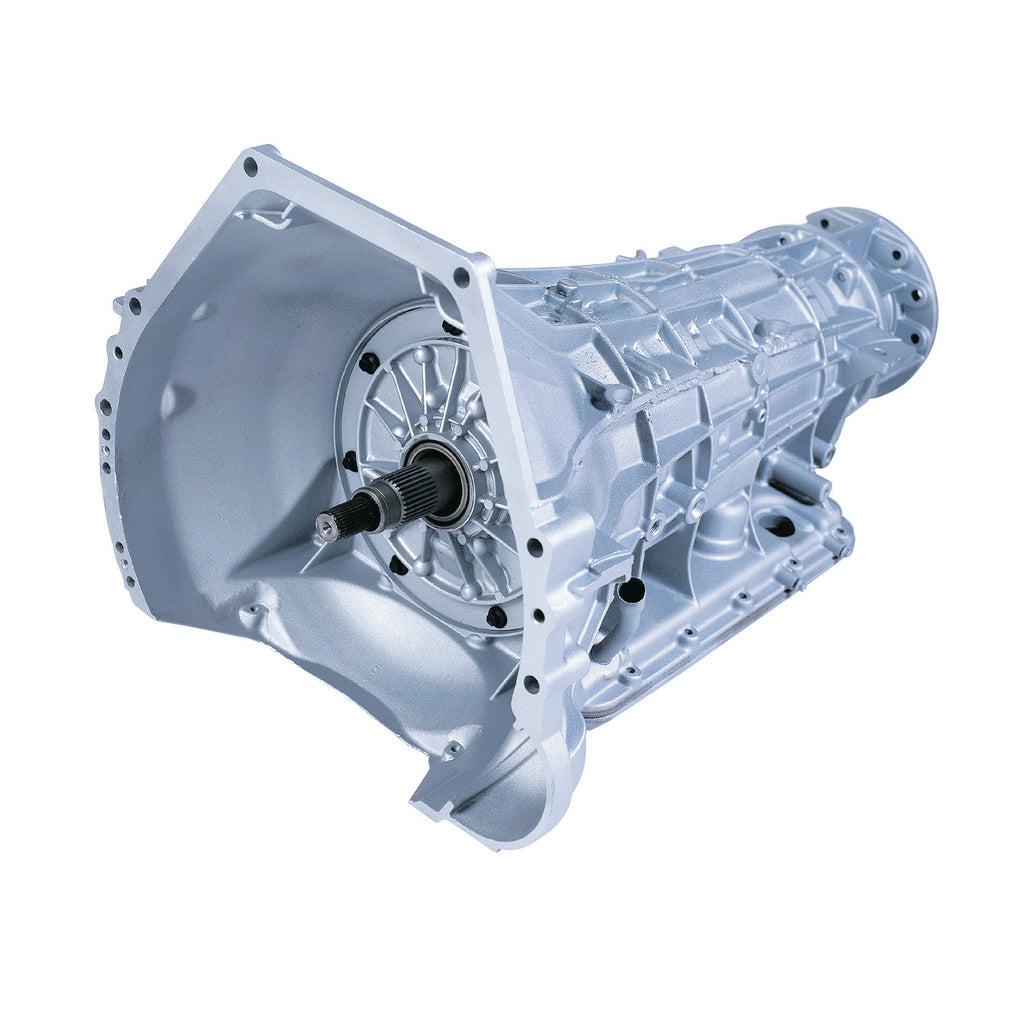

TowMaster Ford 4R100 Transmission - 1999-2003 4wd

$5,420.00 CAD

40811717165110
CD1064444F
REQUIRES $1,650.00 CAD REFUNDABLE CORE DEPOSIT
Features
  • Increase the durability of your drivetrain
  • BD aluminum HD deep pan, increases oil capacity by 6qt
  • Re-calibrated accumulator body
  • Quicker, firmer shifts
  • Full shift kit with line mod valve to increase pressures
  • Increased pressure to converter
  • Added lube circuits to OD planet
  • Added lube and support to output and intermediate shafts
  • Drilled and tapped direct and intermediate feeds to prevent leaks at case
  • Upgraded OD snap ring
  • Machined center support
  • Reworked front pump
  • Fully rollerized geartrain
  • Clutch Count: COAST CLUTCH 2
  • Clutch Count: FORWARD 5 (25% increase over stock)
  • Clutch Count: DIRECT 5
  • Clutch Count: LOW REVERSE 7 (17% increase over stock)
  • Clutch Count: INTERMEDIATE 4 (33% increase over stock)
  • Clutch Count: OVERDRIVE 4 (33% increase over stock)
  • Each transmission is dyno tested

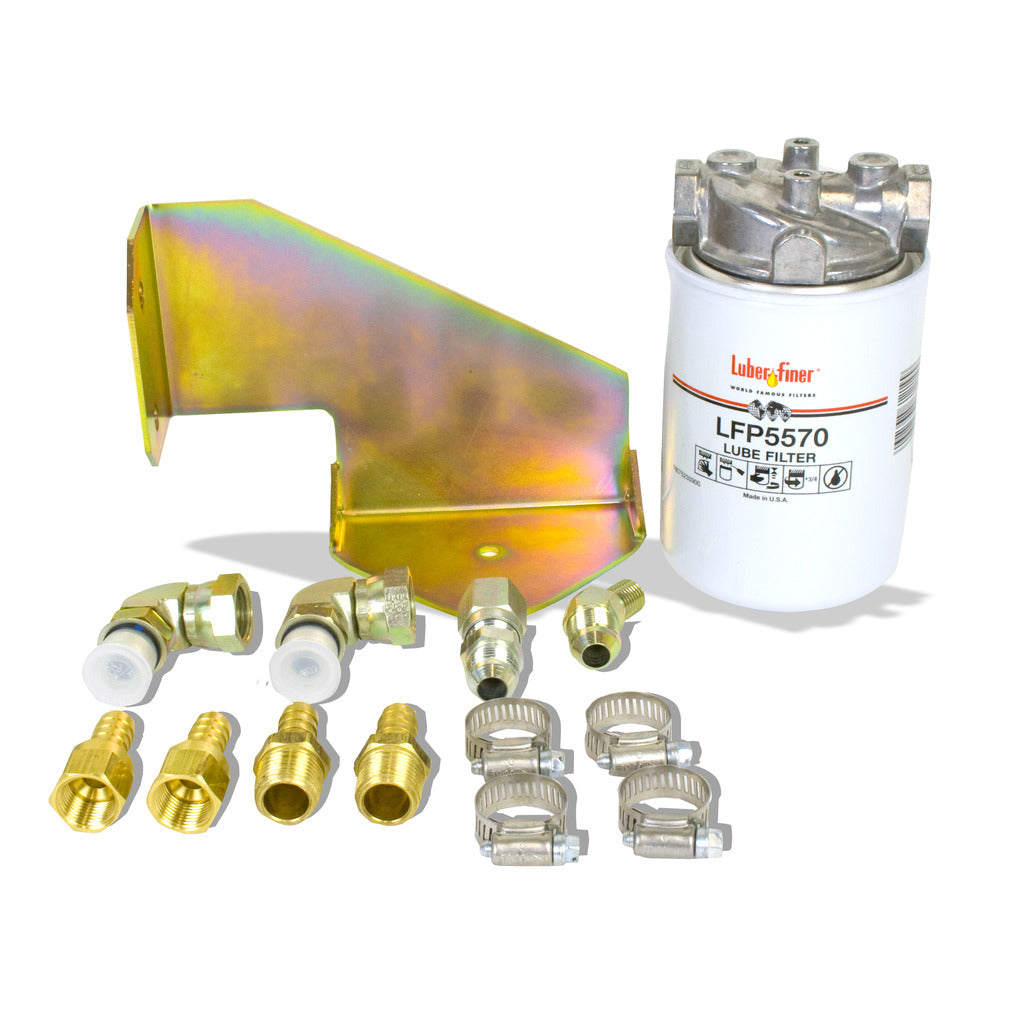

  • 1990-2003 include auxiliary frame mounted full flow filter kit
ABOUT THIS PRODUCT

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

INSTALL TIME

  • 7 Hours

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles

Labor

  • 12-Months
  • 24,000 miles

Note

  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

  • 2wd 4R100 vehicles with attached driveline brake assembly requires 4wd model
  • Add "LR" for 4:88 rear end ratio or lower (i.e. 1064444FLR or 1064444FPTOLR)
  • Add "PTO" to part number for PTO provision (i.e. 1064444FPTO or 1064444FPTOLR)
  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
  • Does not have PTO provision
  • Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember
