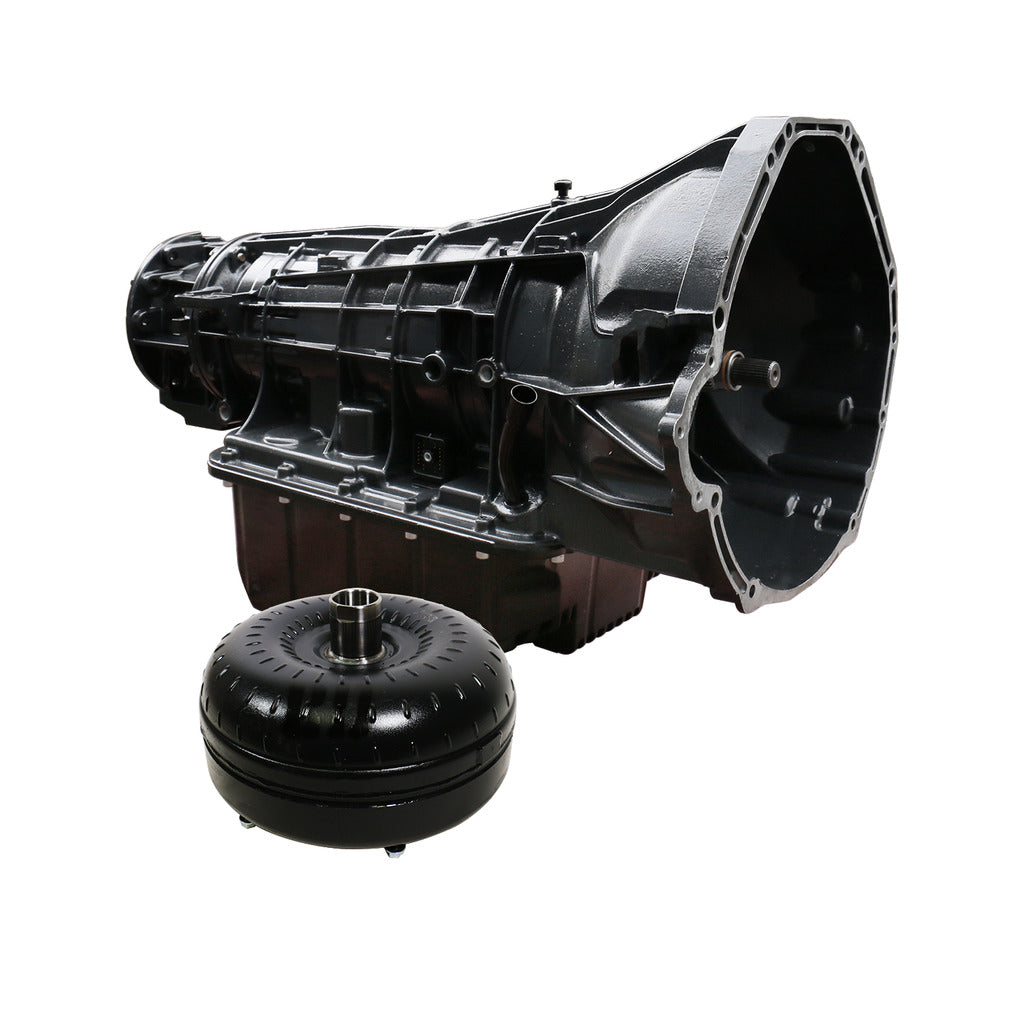

TOWMASTER FORD 5R110 TRANSMISSION & CONVERTER PACKAGE 2005-2007 4WD

TRANSMISSION

• Increase the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Upgraded sump filter
• Replace plastic pressure plugs in valve body with aluminum
• Heavy duty snap ring and pressure regulator valve to prevent runaway pressure damaging case
• Reworked front pump
• Clutch Count: COAST CLUTCH 3
• Clutch Count: FORWARD 4
• Clutch Count: LOW REVERSE 6
• Clutch Count: INTERMEDIATE 5 (67% increase over stock)
• Clutch Count: DIRECT 6 (50% increase over stock)
• Clutch Count: OVERDRIVE 5 (67% increase over stock)
• Each transmission is dyno tested

TORQUE CONVERTOR

• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

INSTALL TIME

• 7 Hours

WARRANTY

Parts

• 36-Months
• 150,000 Miles

Labor

• 12-Months
• 24,000 miles

Note

• No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
