TRANSMISSIONS

PART # 1064514SS

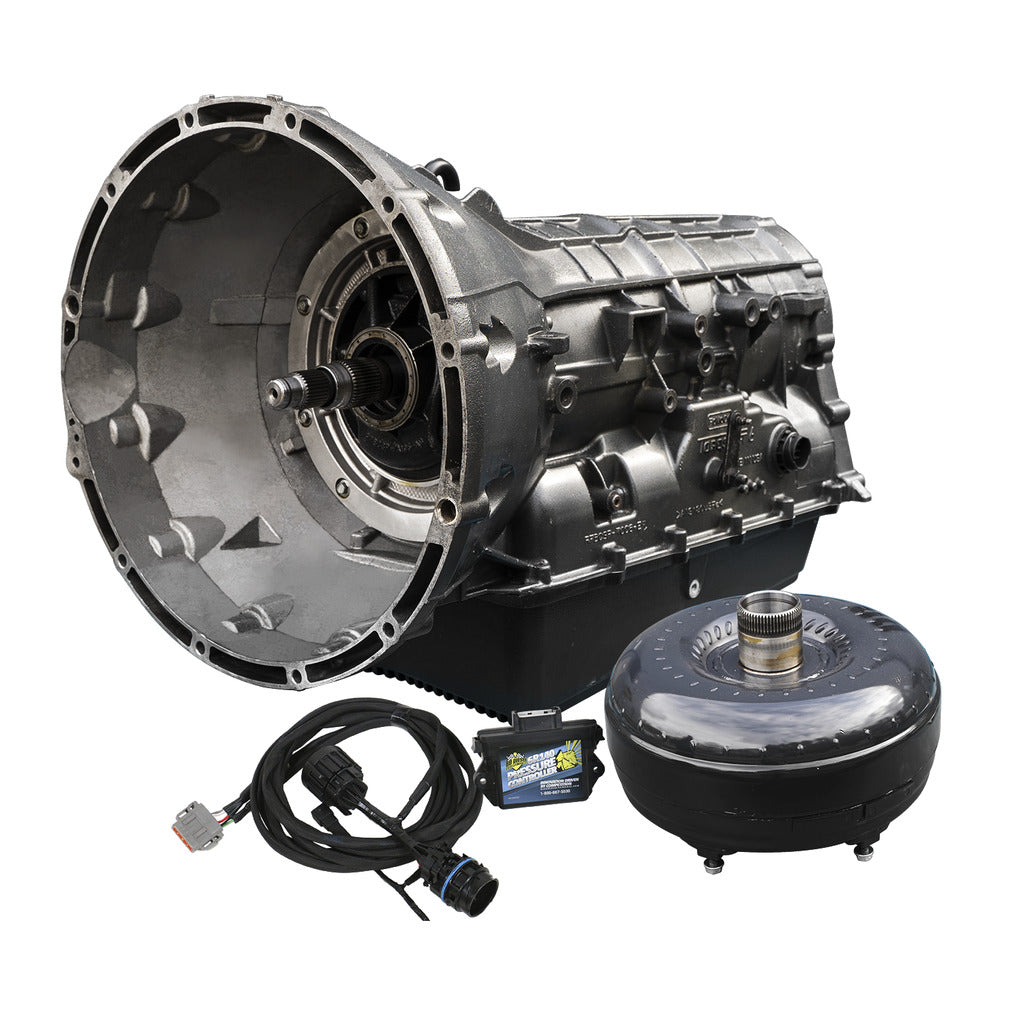

TOWMASTER FORD 6R140 TRANSMISSION & CONVERTER PACKAGE 6.7L POWER STROKE 2017-2019 2WD/4WD

$8,725.00 CAD

40443736490038
CD1064514SS
REQUIRES $2,500.00 CAD REFUNDABLE CORE DEPOSIT
Features

TRANSMISSION

  • More clutches compared to stock and competitors
  • Custom BD patented pressure plates increase clutch count without sacrificing part strength
  • Clutch Count: FORWARD 6 (20% increase over stock)
  • Clutch Count: DIRECT 6 (20% increase over stock)
  • Clutch Count: INTERMEDIATE 8 (60% increase over stock)
  • Clutch Count: OVERDRIVE 8 (14% increase over stock)
  • Clutch Count: LOW REVERSE 5
  • Brand new valve body
  • Electronic Line Pressure Controller for up to 300psi Line Pressure

PRESSURE CONTROLLER

  • 76% more theoretical holding power
  • Delivers up to 300psi line pressure at WOT
  • Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
  • Does not create parasitic load or extra heat when inactive

TORQUE CONVERTOR

  • Ideal replacement for tired stock torque converter
  • Great for street and towing applications
  • Dual surface clutch assembly
  • Machined steel reaction ring replaces flexible factory stamping
  • Furnace-brazed pump and turbine fins
  • Fully remanufactured for long service life
ABOUT THIS PRODUCT

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

INSTALL TIME

  • 12 Hours
  • Will need Ford Scanner

WARRANTY

Parts

  • 36-Months
  • 150,000 Miles

Labour

  • 12-Months
  • 24,000 miles

Note

  • No Race abuse covered

NOTE

  • 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
  • For PTO option please call us at 1-800-887-5030
  • Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
  • Transmission is compatible with both 2wd and 4wd applications
