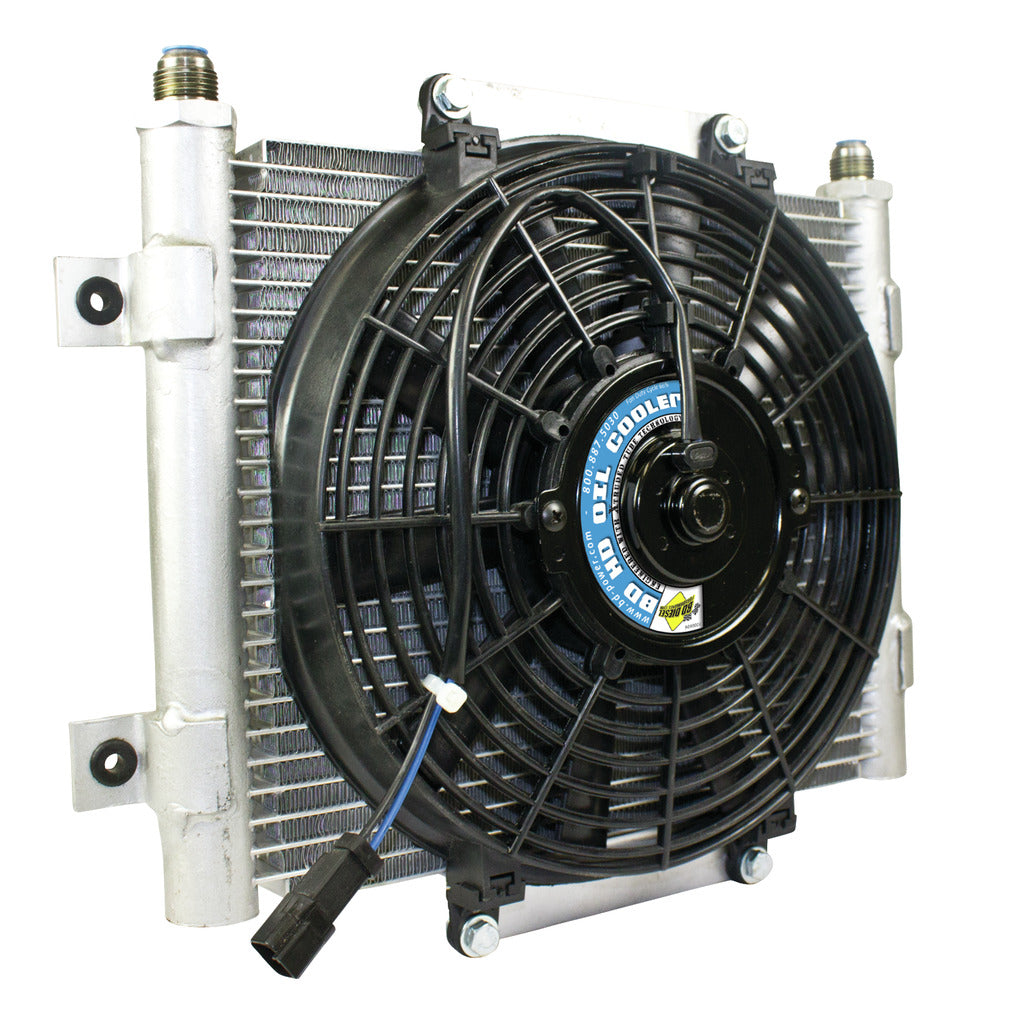

Xtrude Transmission Cooler with Fan 10 JIC Male Connection

• 22% more cooling over other designs
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Motor is IP54 with 65% duty cycle
• Cooler Assembly Only

WARRANTY

Parts

• 12-Months
• 24,000 Miles

NOTE

• Exceeding the duty cycle may result in voiding the warranty
• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
